Steve Rose

Would you be interested in having your current barrel threaded to accept screw in choke tube? I know a guy🙂 Send me a PM or let me know here if this interests you.

Why do you want to move it? Trying to make the gun shoot lower? Those I've seen are locked in by red Loctite. Heat is your friend.

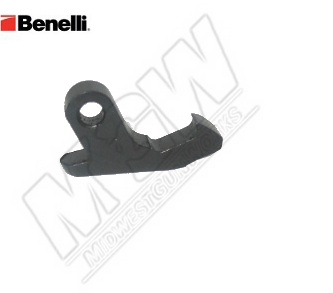

If the 20ga latch in your gun is hinged like the one on the right in this picture then you CANNOT drill/tap it for an enlarged button. The post is hollow (contains a spring) and will not accommodate a screw.

FWIW....to modify the later era Benelli bolts carriers (M2, SBE2, M3, etc.) to allow a ghost load it is NOT necessary to fill in the rear notch. Just bevel the back edge of the notch about 45 degrees as these pictures show. That is all it takes.

When was your M4 manufactured? My "guess" the new model M4 guns use the same spring plunger washer as the M2...but that is just a suspicion on my part https://www.midwestgunworks.com/benelli-m2/washer.html My well used M2 has a washer from a hardware store collection after I lost the original part late one night. Thousands of rounds later I've never seen the need to replace it.

Actually, some of the earlier 20 ga M2 guns had a hinged or " 2 piece" carrier latch. The new 20 ga guns I've seen the past few years (pre 2023) did have a one piece latch like the 12 ga guns. Note the shape of the release button on this linked part, its round, not oval like the post 23 design. 20 ga 2 piece latch Benelli may have made internal changes in the 20 receiver shape when they changed to the (pre 23) one piece latch. That older 2 piece 20 ga latch WOULD fit inside a 12 ga gun. Some 3 gunners tried using them hoping shell would slide into the mag tube easier when speed loading. More info....Look back at the pcitures from July 2020 in this thread @Ty17 Can you post a side by side picture of the two different parts you have? Is the forward end of your 2 pc latch contacting the magazine follower and stopping it from moving enough to release the bolt?

Can you post a side by side picture of the two parts?

Numrich has some: https://www.gunpartscorp.com/products/1440520

Maybe Briley can thread your factory length M4 barrel for Benelli Mobil chokes?.... The chopped Nova barrel is likely too thin for those tubes unless the barrel is quite short (an OD of around .840” minimum required). On a related note my shop still is searching for a set of the 12ga Mobil choke installation tooling that is actually available for purchase (piloted reamer and tap in new or nearly new condition). Any leads that pay off would be greatly appreciated

Or the contact with the fore-end accelerated the finish wear (that is not seen until the gun is disassembled) "It is on the area that is covered by the fore-end when assembled"

I remember this question on that part coming up a few years ago when the spring first appeared. According to a Benelli rep the spring is being installed to stop gas piston or factory forearm rattle but does not affect function if removed.

And yet another https://www.speedshooter.com/product/dmw-benelli-speedbar/

Here's another version https://cpwsa.com/product/benelli-carrier-rapid-release-tab/

Install the shims that will add more “drop” to the stock, that lowers the end of the stock helping you look down the rib instead of seeing rib. The higher the number on the shim the greater the “drop” distance of your stock fit. Think of the recoil pad end of the stock as a rear sight. When making sight in adjustments you move the “rear sight” the direction you want to move the point of impact on the target.

The fine thread tube is the early version, serial numbers below M155400
